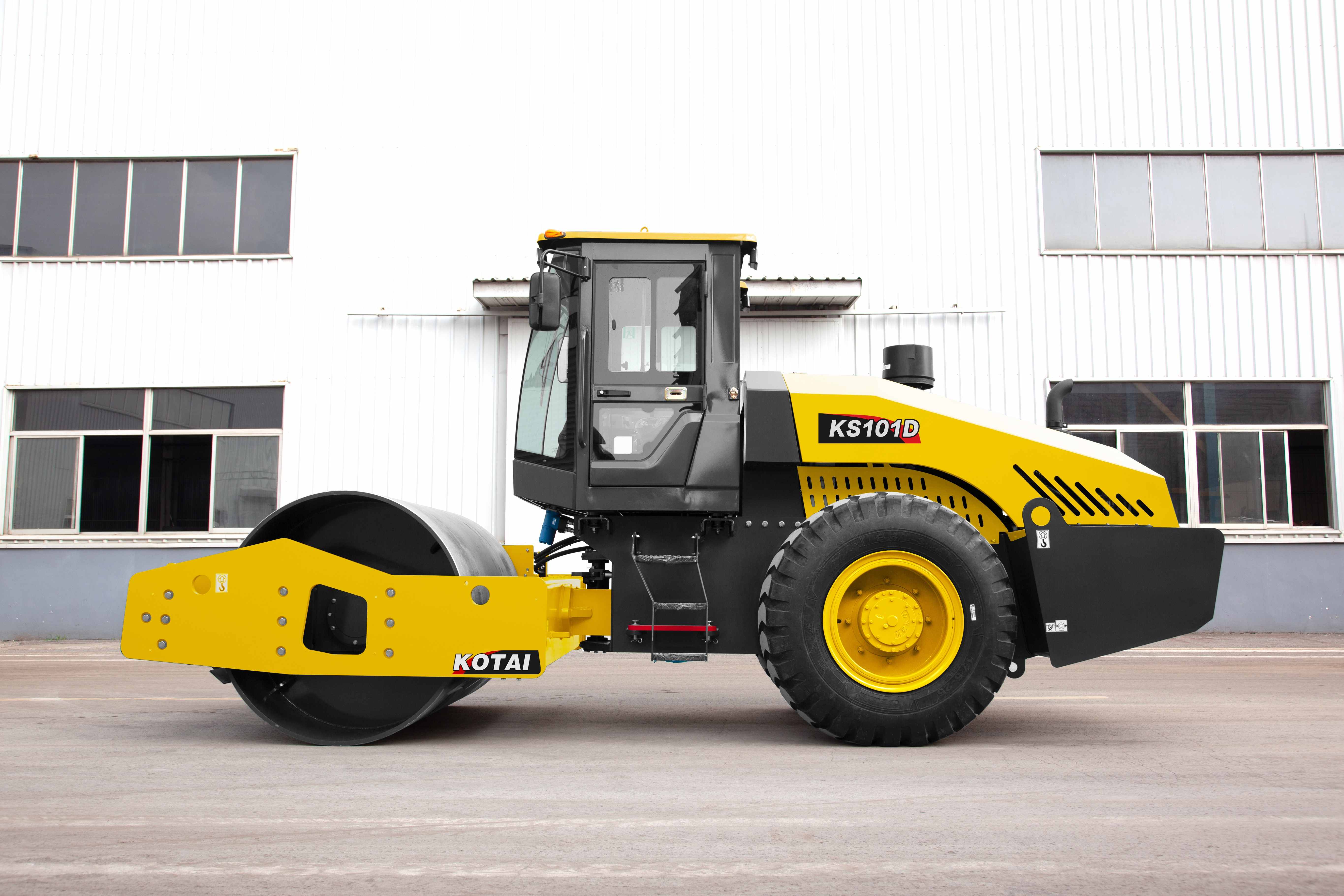

KS101D Fully Hydraulic Single Steel Wheel Vibratory Road Roller

1.Equipped with Weichai WP4G engine, power 97.5KW, quick start, convenient electric shutdown, durable and fuel-efficient, meeting the emission requirements of National II.

2.Equipped with a hydraulically enhanced drive axle, reducer gear boss,it can automatically allocate torque based on road conditions, ensuring that the roller can exert its maximum required traction under various working conditions.

3.The closed hydraulic system with variable piston pump and motor ensures that the road roller has good driving performance and high climbing ability. The hydraulic stepless change ensures that the work is carried out at the most suitable speed under different working conditions.

4.Adopt quantitative gear pump, motor to form open hydraulic vibration system, scientific and reasonable static line load and exciting force configuration, to ensure efficient compaction of different of material layers.

5.The braking system consists of a hydraulic travel pump, a hydraulic drive axle, and a steel wheel reduction gear with hydro-static braking, providing three functions:, parking, and emergency, ensuring safe and reliable driving.

6.The vibrating wheel adopts a two-point support and a reinforced inner cylinder vibration chamber structure, which has a simple structure, high strength and good rigidity, uses a special vibration bearing, which has a patented vibration bearing lubrication and cooling technology, ensuring the long life and high reliability of the vibrating wheel.

7.According to the principle of ergonomics, the front steering and right-side control structure is adopted, which is comfortable to operate. The control handle box integrates color display and a combined key panel, which can provide maintenance and repair information at any time, avoiding equipment operation with "diseases" and preventing equipment damage

8.The cab has good sealing performance, and can be equipped with air conditioning, luxury seats, large internal space and large area glass, which provides a and comfortable operating environment for the driver.

9.A large angle forward flip hood, which makes the maintenance parts fully visible.
